Architecture Studio

Earlier to later work = bottom to top.

Second project, second year:

site plan:

front elevation:

rear elevation:

floor plan set:

suite plan detail:

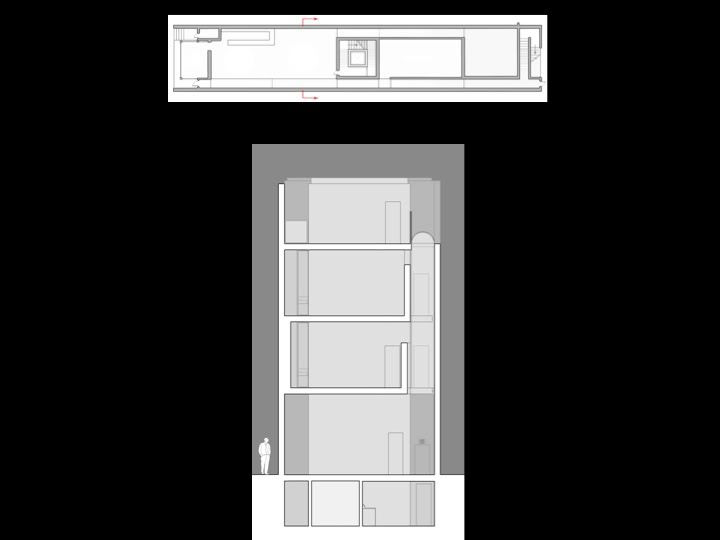

transverse section, through cafe and libraries:

transverse section, through circulation tower:

transverse section, through shared suite courtyard into gallery:

axo section:

detail of light flow through courtyards:

detail of light flow through circ. tower:

from edge of old main lawn:

from college ave. sidewalk:

entrance atrium:

cafe space:

gallery:

public library:

private roof terrace:

rear, from calder way:

night rendering, college ave:

(first studio project, second year: designing a jewelry store in State College, PA)

(site plan)

(front elevation)

(photoshopped close-up elevation)

(plan)

(ceiling plan, note circular geometry of plan continued upwards into ceiling)

(longitudinal section cut, looking toward the east)

(the same cut, looking toward the west)

(perspective, looking toward the entrance/north)

(perspective, main display area)

(perspective, looking toward seminar area/back of store/south)

(a few close-ups of the displays, note permeability of facade, each display in front is also a window looking out on college ave.)
